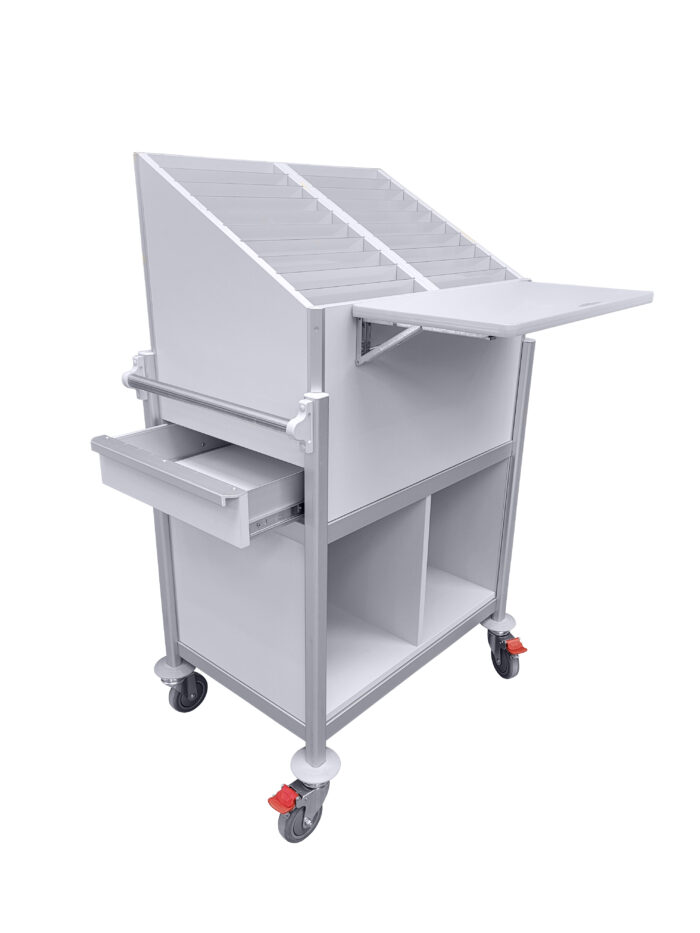

Chart TrolleyCT-7450-20
Large capacity chart & patient records trolley
- Frame size, 730 W x 500 D x 1260H mm
- 2 bays of 10 patient files, 20 removable files in total with an ergonomically designed slope for easy access. 260mm H, 305mmW with 40mm gap between files
- 1 x small drawer (300W, 430D, 83Hmm) made from ethically sourced aluminium on the left hand side
- Full-width aluminium drawer handle
- 2 storage spaces under files (315W, 440D, 375Hmm)
- Lift-up flap on the front of the unit for note-taking, made from antimicrobial, moisture, scratch & stain resistant finish
- 100mm Nylon reinforced castors braked front, non-braked rear
- Designed and made in New Zealand
Additional Information
- Our trolley frames are made from natural anodised aluminium extrusions with a unique interlocking assembly system
- Natural anodised aluminium extruded trolley posts deliver years of durability. Our New Zealand-sourced aluminium can be recycled indefinitely
- Slim-walled natural anodised aluminium drawers for years of durability
- Our trolley drawers use European-designed full extension steel runners with a total drawer weight rating of 45kgs (including the drawer)
- Drawer internal height options of 75 mm (small), 125 mm (medium) and 175 mm (large)
- Solid natural anodised aluminium drawer handles
- Cabinets are made from low-pressure melamine
- Worktop surfaces and shelves made from hard-wearing compact laminate
- An ‘L’ shaped trolley rail that provides a lip on all sides of shelves or reversed for a flush top
- 100 mm nylon castors
- Wall protection buffers fitted to trolley posts above castors
- Drawer bases are made using moisture-resistant (MR) E0-MDF boardsourced from sustainable forests and processed by fully qualified FSC and PEFC mills in New Zealand. The base is wear and scratch-resistant, making it an easy-to-clean surface and chemical-resistant.
- Tasman Medical Trolleys are designed and made in Taranaki, New Zealand
- 125mm castors
- Anti-Microbial cabinets (to JIS Z 2801)
- Locks fitted for single or multiple drawers, including Smart Digital Locks
- IV Pole
- Oxygen bottle holder
- Lift-up flap
- Pull out slide
- Upstand extension with or without parts bins
- Stainless steel shelves and worktops
Our standard medical trolley drawer & cabinet standard colours are
- Prime Grey (G)
- Prime White (W)
We offer the following premium colours and an Anti-Microbial white, or alternatively, can match to your specific requirement.
.
.
.
.
.
.
- Nylon fibre reinforced forks
- Non-marking soft rubber wheels
- New series of castors combining a high-functional structure and smart design
- Precision waterproof ball bearings to ensure easy and silent movement, even with maximum loads
Things to consider with our warranty.
- Your Tasman Trolley should give you years of service. It is not uncommon to see our products still in use after 20+ years. You can renew this warranty for another five (5) years with our refresh warranty program.
- Your Tasman Trolley has a five (5) year warranty on most components. Electrical components are 12 months. Please contact us if you have any issues.
- Read more details about our warranty
