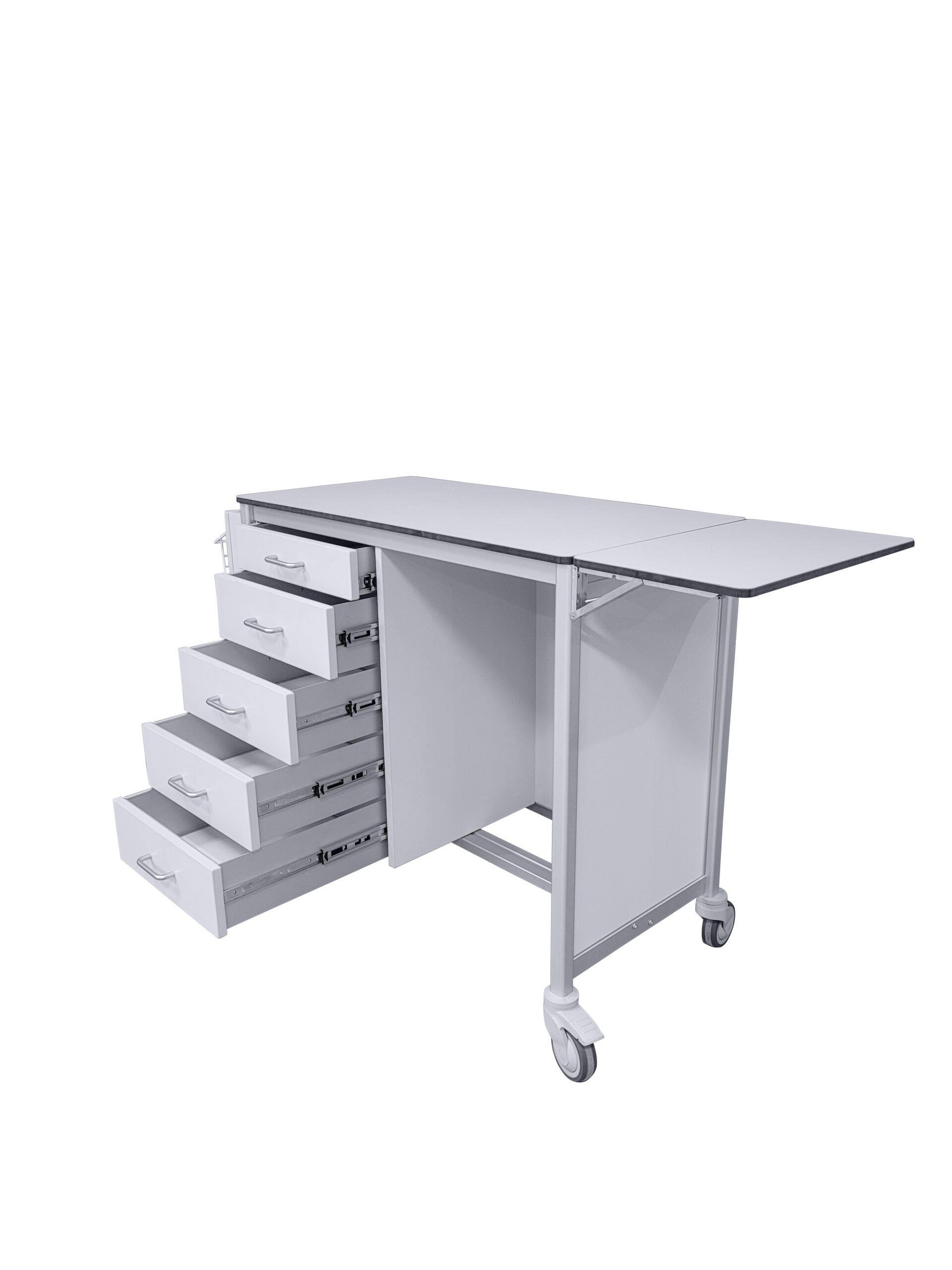

End-of-Bed TrolleyEB-9648-1S-4M-RF
Generously sized End-of-Bed trolley with extra storage
Designed to support nurses and clinicians at the point of care, this End-of-Bed Chart Trolley provides an organised workstation for patient records, bedside documentation, and essential clinical supplies. With a practical combination of one small drawer and four medium drawers, it offers generous storage while keeping frequently used items organised and readily accessible throughout every shift.
- 1 x large drawer (386W, 400D, 83Hmm) made from ethically sourced aluminium
- 3 x medium drawers (386W, 400D, 128Hmm) made from ethically sourced aluminium
- Full-width PureGrip® aluminium drawer handles (shown with D handles as an option)
- Lift-up flap to extend the work surface
- Folder bin with wire rack for extra storage
- Antimicrobial top and flap, stain, scratch and water-resistant
- 100mm Nylon reinforced castors, braked front, non-braked rear
- Designed & made in New Zealand
Additional Information
- Trolley frames are made from natural anodised aluminium extrusions with a unique interlocking assembly system
- Natural anodised aluminium extruded trolley posts deliver years of durability. Our New Zealand-sourced aluminium can be recycled indefinitely
- Slim-walled natural anodised aluminium drawers for years of durability
- Our trolley drawers use full extension steel runners with a total drawer weight rating of 45kgs (including the drawer)
- Drawer internal height options of 83 mm (small), 128 mm (medium), 180 mm (large) and 260mm (extra-large)
- Solid PureGrip® natural anodised aluminium drawer handles
- Cabinets are made from low-pressure melamine with tops made from Compact Laminate
- Shelves are made from Compact Laminate which is impervious to moisture.
- Many trolleys feature removable and reversible solid Compact Laminate shelves. Imprevious to moisture, these shelves are easy to clean and can handle detergent & disinfectant wipes
- An ‘L’ shaped trolley rail that provides a lip on all sides of shelves or reversed for a flush top
- 100 mm nylon castors
- Wall protection buffers fitted to trolley posts above castors
- Drawer bases are made using moisture-resistant (MR) E0-MDF boards sourced from sustainable forests and processed by fully qualified FSC and PEFC mills in New Zealand. The base is wear- and scratch-resistant, making it an easy-to-clean surface and chemical-resistant.
- Tasman Medical Trolleys are designed and made in Taranaki, New Zealand
- 125mm castors
- Anti-Microbial cabinets (to JIS Z 2801)
- Locks fitted for single or multiple drawers, including Smart Digital Locks
- IV Pole
- Oxygen bottle holder
- Lift-up flap
- Pull out slide
- Upstand extension with or without parts bins
- Stainless steel shelves and worktops
Our standard medical trolley drawer & cabinet standard colours are
- Prime Grey (G)
- Prime White (W)
We offer the following premium colours and an Anti-Microbial white, or alternatively, can match to your specific requirement.
.
.
.
.
.
.
- Nylon fibre reinforced forks
- Non-marking soft rubber wheels
- New series of castors combining a high-functional structure and smart design
- Precision waterproof ball bearings to ensure easy and silent movement, even with maximum loads
Things to consider with our warranty.
- Your Tasman Trolley should give you years of service. It is not uncommon to see our products still in use after 20+ years. You can renew this warranty for another five (5) years with our refresh warranty program.
- Your Tasman Trolley has a five (5) year warranty on most components. Electrical components are 12 months. Please contact us if you have any issues.
- Read more details about our warranty
